KD PREMIUM 90 doors are metal fire doors with a thickness of 75 mm and an EI₂90 classification.

KD PREMIUM 120 doors are metal fire doors with a thickness of 75 mm and an EI₂120 classification.

Fire doors are intended for installation at the boundaries of fire and/or smoke control sections, as well as for installation on escape routes. They are suitable for indoor and outdoor use. They are installed in walls which must have an appropriate fire classification and must be properly prepared. The doors are manufactured from materials which have the characteristics for good thermal insulation and humidity resistance. The doors are equipped with three-part INOX hinges with adjustable height, width, and depth. Fire doors must be equipped with door closers, which ensure that the doors are closed in the case of fire. Fire doors that are opened occasionally and are installed in rooms which may only be accessed by authorised persons and which are intended for the inspection and servicing of equipment may be installed without door closers, but they must be labelled with the words “FIRE DOOR, KEEP SHUT!”.

The basic versions of the KD PREMIUM 90 and KD PREMIUM 120 doors are smooth with a powder coating colour from the RAL colour chart.

STANDARD EQUIPMENT:

• cylinder lock,
• INOX handle on both sides,
• adjustable striking plate for lock,
• 3 three-part INOX hinges*,
• 2 x safety bolt**,
• door closer,
• silicone seal.

*The number of hinges is determined by the size and weight of the door.

**The number of bolts is determined by the height of the door.

UPGRADING DOORS IN ACCORDANCE WITH THEIR INTENDED USE

The intended use of a door in a building can also be determined by the system of fittings with which it is equipped. The selected fittings determine the function of the operation of the door.

DIMENSIONS

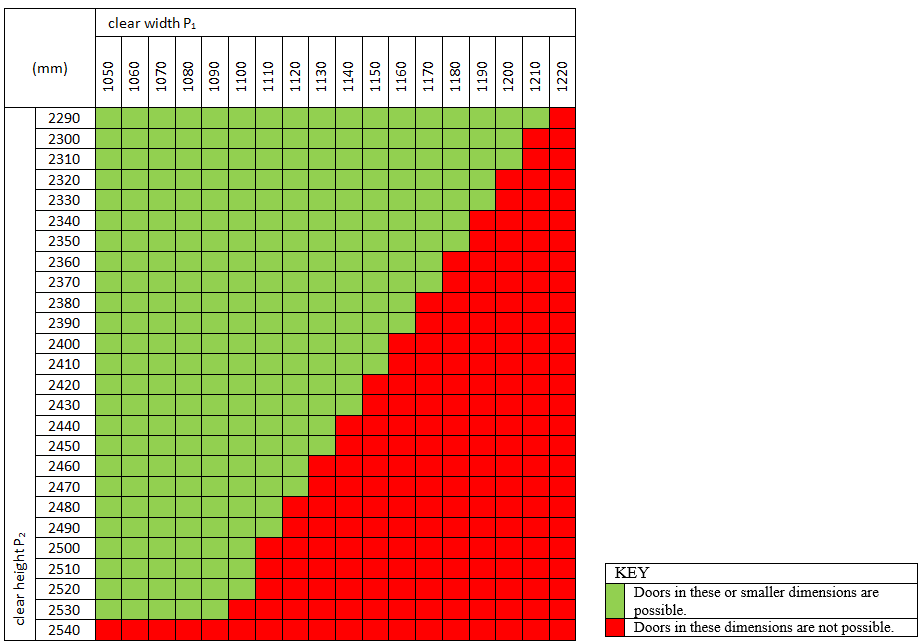

MAXIMUM SIZE OF THE KD PREMIUM 90 DOOR ANDKD PREMIUM 120 DOOR - Single-leaf door

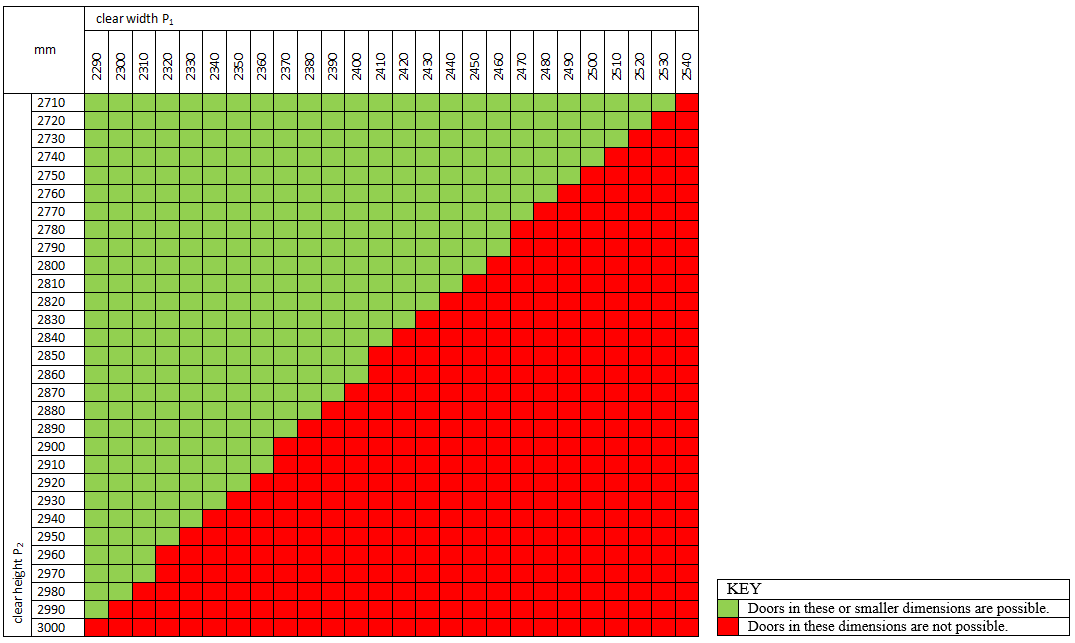

MAXIMUM SIZE OF THE KD PREMIUM 90 DOOR ANDKD PREMIUM 120 DOOR - double-leaf door

SECTION of KD PREMIUM 90 and KD PREMIUM 120 doors

Table with example for calculating KD PREMIUM 90 and KD PREMIUM 120 door dimensions

If you want an asymmetrical double-leaf door, you need to determine the size of the active leaf P₁A in your order, otherwise we will produce a symmetrical double-leaf door.

KD PREMIUM 90 and KD PREMIUM 120 doors are combined with metal KD frames:

Model:  KD SMP 1 0 65 Description basic drywall fire frame

Adaptability to wall thickness:

T = minimum 100 mm

A metal border can be manufactured to compensate for the difference in wall thickness.

INSTALLATION
