Transoms for fanlights and sidelights can be used in combination with all door frame models. The depth of the rebate on the transom is determined by the selected door frame model.
Transoms can be used for manufacturing a freestanding wall.
 |
PR 1The PR 1 transom is suitable for manufacturing fanlight door frames of any model. The transom can be used in a single or double-leaf door frame. |
 |
PR 2The PR 2 transom is suitable for manufacturing sidelight and fanlight door frames of any model. The transom can be used in a single or double-leaf door frame. For a composition example see pages 9–10. |
 |
PR 3The PR 3 transom is used in combination with the PR 2 transom in the manufacture of a freestanding wall. It is used on the outer side. |

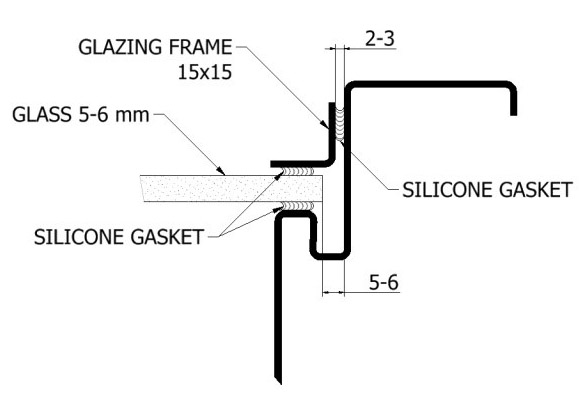

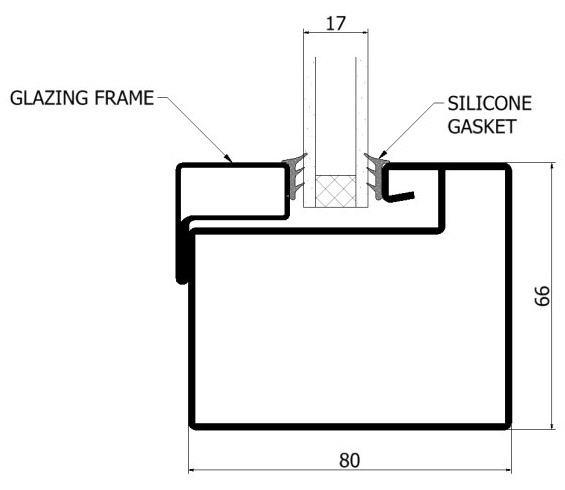

Installation of glass with standard frame for fanlight

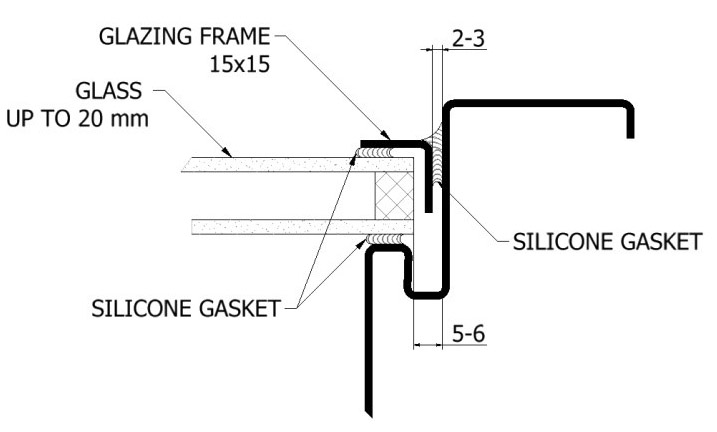

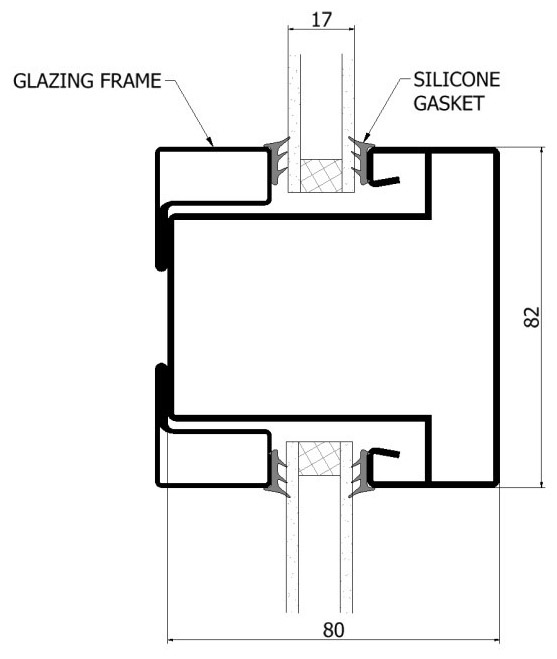

Installation of glass for sidelight and fanlight
