KD ELEGANCE 90 doors are metal fire doors with a thickness of 75 mm and an EI₂90 classification.

KD ELEGANCE 120 doors are metal fire doors with a thickness of 75 mm and an EI₂120 classification.

Fire doors are intended for installation at the boundaries of fire and/or smoke control sections, as well as for installation on escape routes. They are suitable for indoor and outdoor use. They are installed in walls which must have an appropriate fire classification and must be properly prepared. The doors are manufactured from materials which have characteristics for good thermal insulation and moisture resistance. The doors are equipped with three-part INOX hinges with an adjustable height, width, and depth. Fire doors must be equipped with door closers, which ensure that the doors are closed in the case of fire. Fire doors that are opened occasionally and are installed in rooms which may only be accessed by authorised persons and which are intended for the inspection and servicing of equipment may be installed without door closers, but they must be labelled with the words “FIRE DOOR, KEEP SHUT!”.

The basic versions of the KD ELEGANCE 90 and KD ELEGANCE 120 doors are smooth with a powder coating colour from the RAL colour chart.

STANDARD EQUIPMENT:

• cylinder lock,
• INOX handle on both sides,
• adjustable striking plate for lock,
• 3 three-part INOX hinges*,
• 2 x safety bolt**,
• door closer,
• silicone seal.

*The number of hinges is determined by the size and weight of the door.

**The number of bolts is determined by the height of the door.

UPGRADING DOORS IN ACCORDANCE WITH THEIR INTENDED USE

The intended use of a door in a building can also be determined by the system of fittings with which it is equipped. The selected fittings determine the function of the operation of the door. See ADDITIONAL EQUIPMENT and SYSTEMS OF FITTINGS.

DIMENSIONS

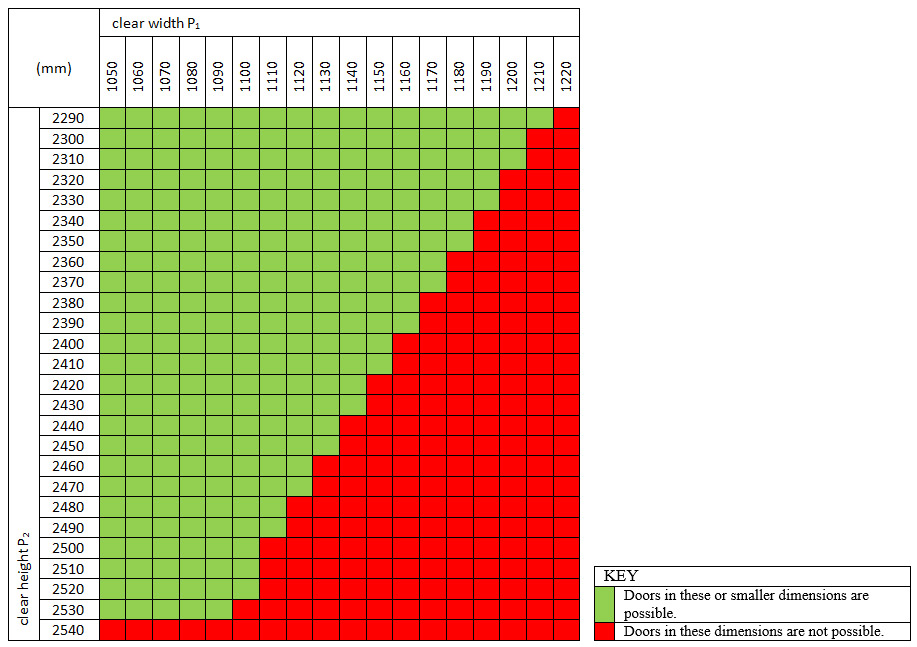

KD ELEGANCE 90 AND 120 DOOR MAXIMUM DIMENSIONS – single-leaf

KD ELEGANCE 90 AND 120 DOOR MAXIMUM DIMENSIONS – double-leaf

SECTION of KD ELEGANCE 90 and KD ELEGANCE 120 doors

Table with example for calculating KD ELEGANCE 90 and KD ELEGANCE 120 door dimensions

If you would like an asymmetrical double-leaf door, please determine the size of the active leaf P₁A in your order, otherwise we will produce a symmetrical double-leaf door.

KD ELEGANCE 90 and KD ELEGANCE 120 doors are combined with metal KD frames:

Model: KD SMP 6 0 82 Description: basic, drywall, fire model

Adaptability to wall thickness:

T = minimum 150 mm

A metal border can be manufactured to compensate for the difference in wall thickness.

Adaptability to wall thickness:

T = minimum 150 mm

A metal border can be manufactured to compensate for the difference in wall thickness.

INSTALLATION
